Smart Power Control
8 programmable eFuses with real-time current feedback and overload protection.
Reliable Connectivity
Supports Modbus RTU, RS-485, and Ethernet for flexible integration.
Safety & Redundancy
Hardware fuse backup ensures reliability under critical conditions.
Configurable Logic
Adjust eFuse behavior remotely or with onboard DIP switches.
Typical applications
Vehicles: Trucks, buses, off-road equipment
Industrial: Sensor networks and control systems
Agriculture: Smart irrigation and field monitoring
Surveillance: Mobile command and radar units
Specificaitons
Input Voltage
12–32 V DC
Max Load
15 A per channel (120 A total)
Outputs
8 eFuse-protected channels with physical fuse backup
Interfaces
Ethernet (Modbus RTU / RS-485)
Indicators
RGB LED for each output
Fuse Type
Automotive mini APM
Configuration
DIP switches and software setup
Feedback
Real-time current & voltage monitoring
Expansion
Connect up to 7 units (64 channels total)

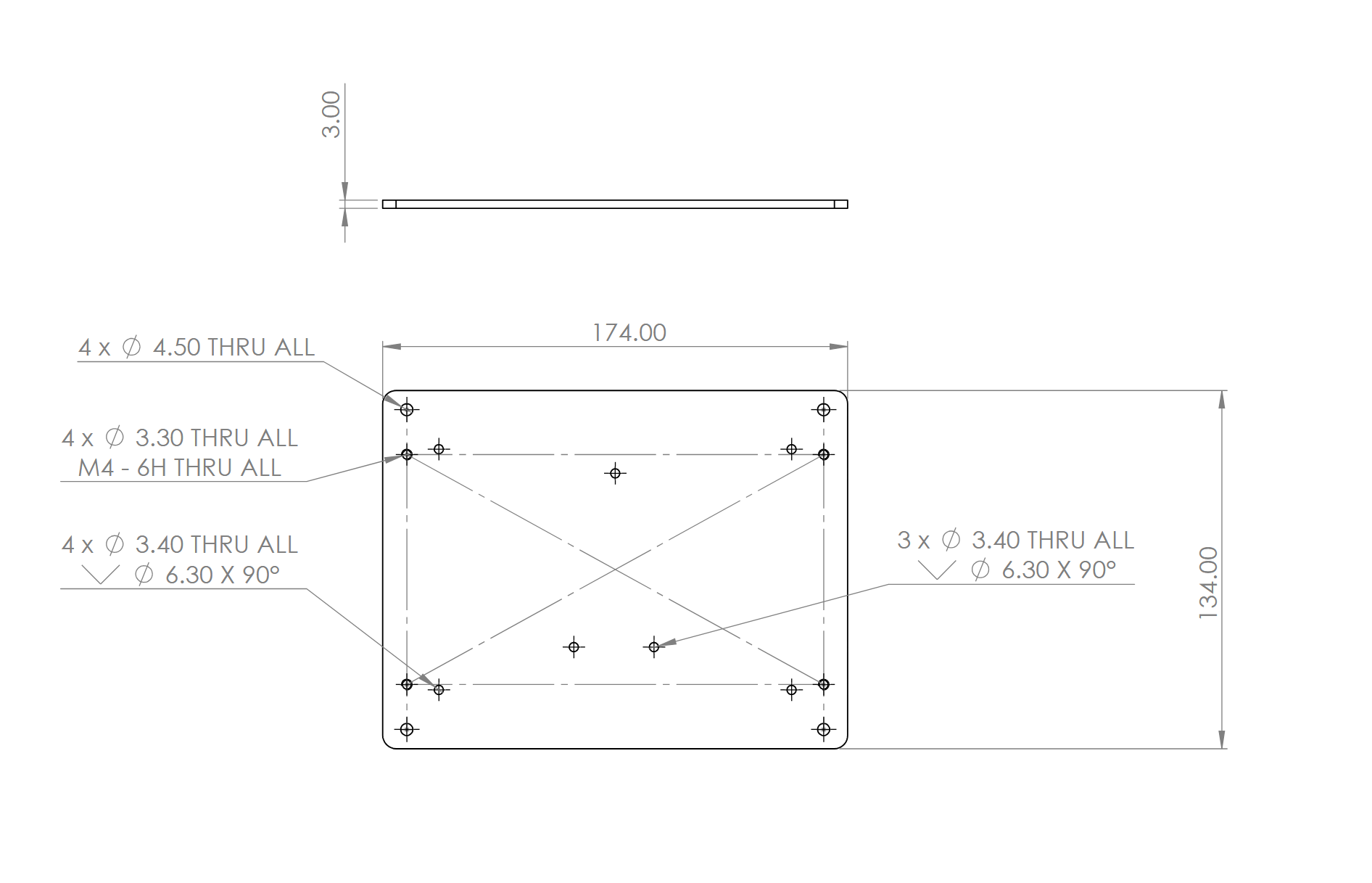

Dimensions
135 x 175 x 40 mm (L x W x H)
